Types of Aluminum Door and Window Openings: The Complete Guide for Architects and Developers

Why the Opening Type Matters More Than You Think

When architects and developers specify aluminum doors and windows, the conversation often starts with frame color, glass type, and U-value. But the opening mechanism — how the window or door actually operates — is arguably the most consequential decision in the entire specification. It determines ventilation performance, weather sealing, security, accessibility, maintenance access, and the usable floor area around the opening.

Choosing the wrong opening type leads to problems that persist for the entire life of the building: windows that cannot be cleaned from inside, doors that block furniture layouts when opened, ventilation gaps that let rain in, or emergency egress paths that do not meet code. These are not aesthetic preferences — they are functional engineering decisions that affect building performance, occupant comfort, and long-term maintenance costs.

This guide covers every major aluminum window and door opening type manufactured by Will Enterprise, with technical diagrams showing exactly how each mechanism works, along with the performance characteristics, ideal applications, and specification considerations that architects and developers need to make informed decisions.

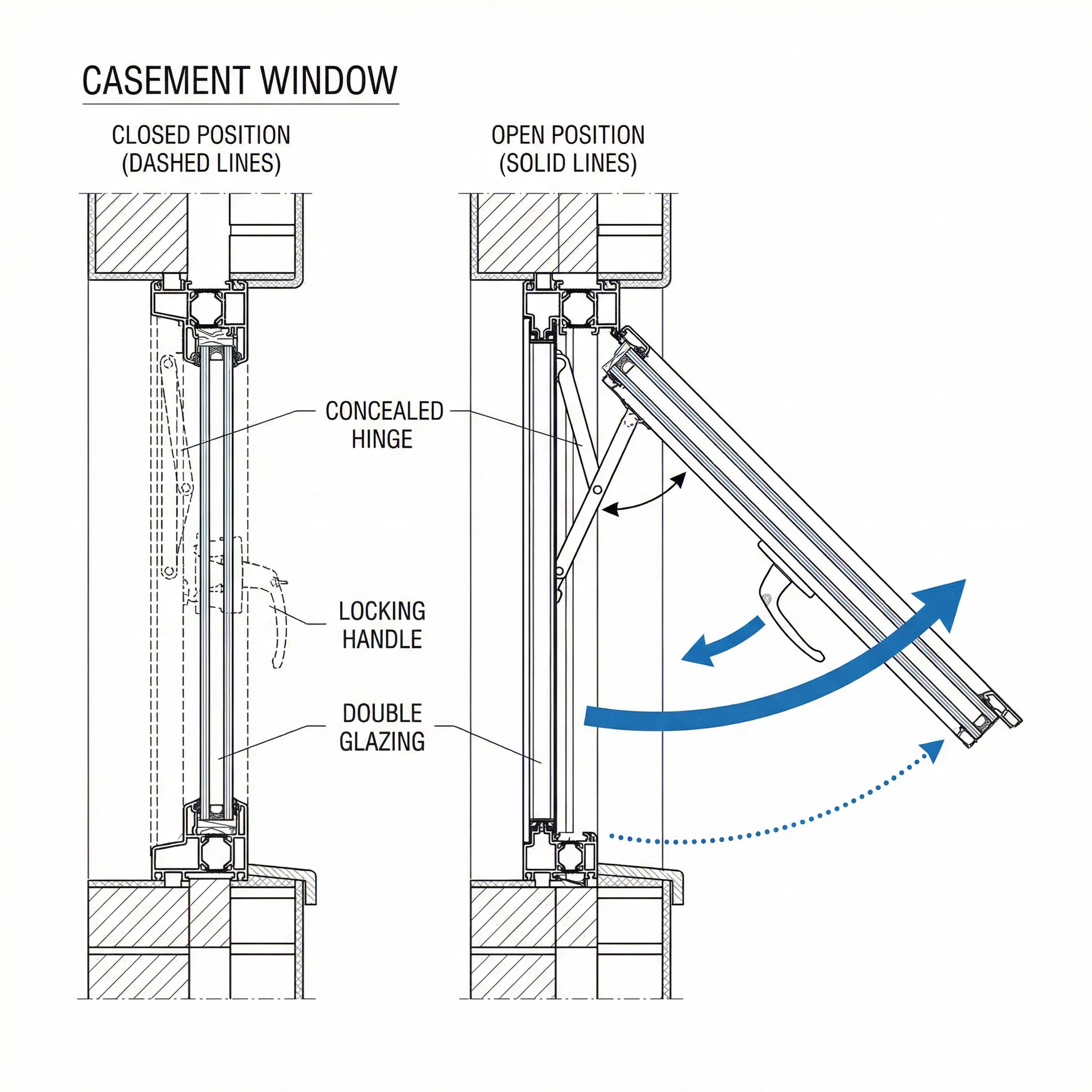

Casement Windows: The Versatile Standard

The casement window is hinged on one vertical side and swings outward (or inward, depending on the specification) like a small door. It is operated by a crank handle or lever mechanism and can typically open to a full 90-degree angle, providing maximum ventilation area relative to the window size.

How it works: A concealed friction hinge system connects the sash to the frame along one vertical edge. When the handle is turned, the multi-point locking mechanism releases, and the sash swings outward on the hinge axis. The friction stay holds the sash at any desired opening angle, preventing it from slamming in the wind.

Key performance characteristics: Casement windows offer the best air sealing of any operable window type because the sash presses directly against the weatherstrip when closed, creating compression seals on all four sides. This makes them ideal for high-wind environments and projects requiring superior air infiltration ratings. When fully open, a casement window provides 100% of its area as ventilation opening — compared to only 50% for a sliding window of the same size.

Best applications: Residential buildings, hotels, hospitals, schools, and any project where maximum natural ventilation and tight weather sealing are priorities. Casement windows are particularly effective in tropical and subtropical climates where cross-ventilation is essential for occupant comfort.

Specification considerations: Outward-opening casement windows should not be specified on upper floors of high-rise buildings where wind loads could damage the sash or hinge mechanism. For buildings above 4-5 stories, inward-opening casement or tilt-and-turn configurations are recommended. Maximum practical sash size is approximately 800mm wide by 1,500mm tall for standard hardware.

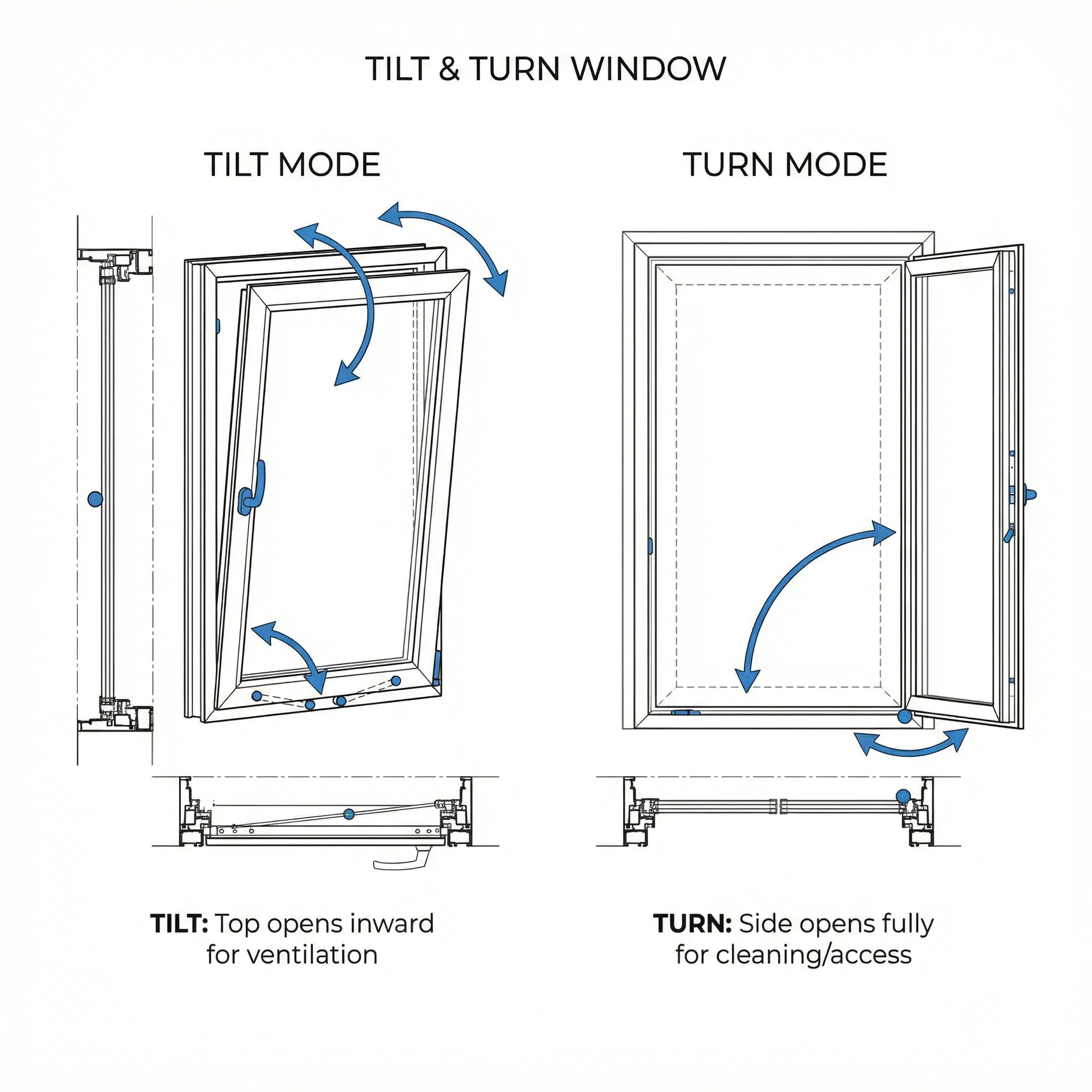

Tilt & Turn Windows: Two Functions in One Frame

The tilt-and-turn window is the most versatile opening type available in aluminum fenestration. A single handle controls two distinct opening modes: tilt mode (the top of the sash tilts inward for secure ventilation) and turn mode (the sash swings fully inward like a door for cleaning and maximum airflow).

How it works: The handle position determines the opening mode. Handle pointing up activates tilt mode — the sash tilts inward from the top, typically 10-15 degrees, while remaining secured at the bottom and sides. Handle pointing sideways activates turn mode — the sash swings fully inward on a vertical hinge, like a casement window but opening into the room. Handle pointing down locks the window completely with multi-point locking.

Key performance characteristics: Tilt mode provides rain-protected ventilation — because the opening is at the top and the sash tilts inward, rain cannot enter even during moderate storms. This is a critical advantage in climates with frequent rain showers where occupants want to leave windows open for fresh air. Turn mode provides full interior access to the exterior glass surface, enabling safe cleaning from inside the building — essential for upper floors where exterior access is impossible.

Best applications: Mid-rise and high-rise residential buildings, office towers, hotels, hospitals, and any building above 3-4 stories where exterior window cleaning is impractical. Tilt-and-turn is the dominant window type in European construction and is rapidly gaining adoption in the Middle East, Latin America, and Southeast Asia.

Specification considerations: Tilt-and-turn windows require clear interior space for the sash to swing inward in turn mode. Furniture, blinds, or curtains must not obstruct the swing path. The hardware system (typically Roto, Siegenia, or Maco) is more complex than casement hardware, so quality of the hardware brand directly affects long-term reliability. Will Enterprise uses exclusively European-certified hardware systems.

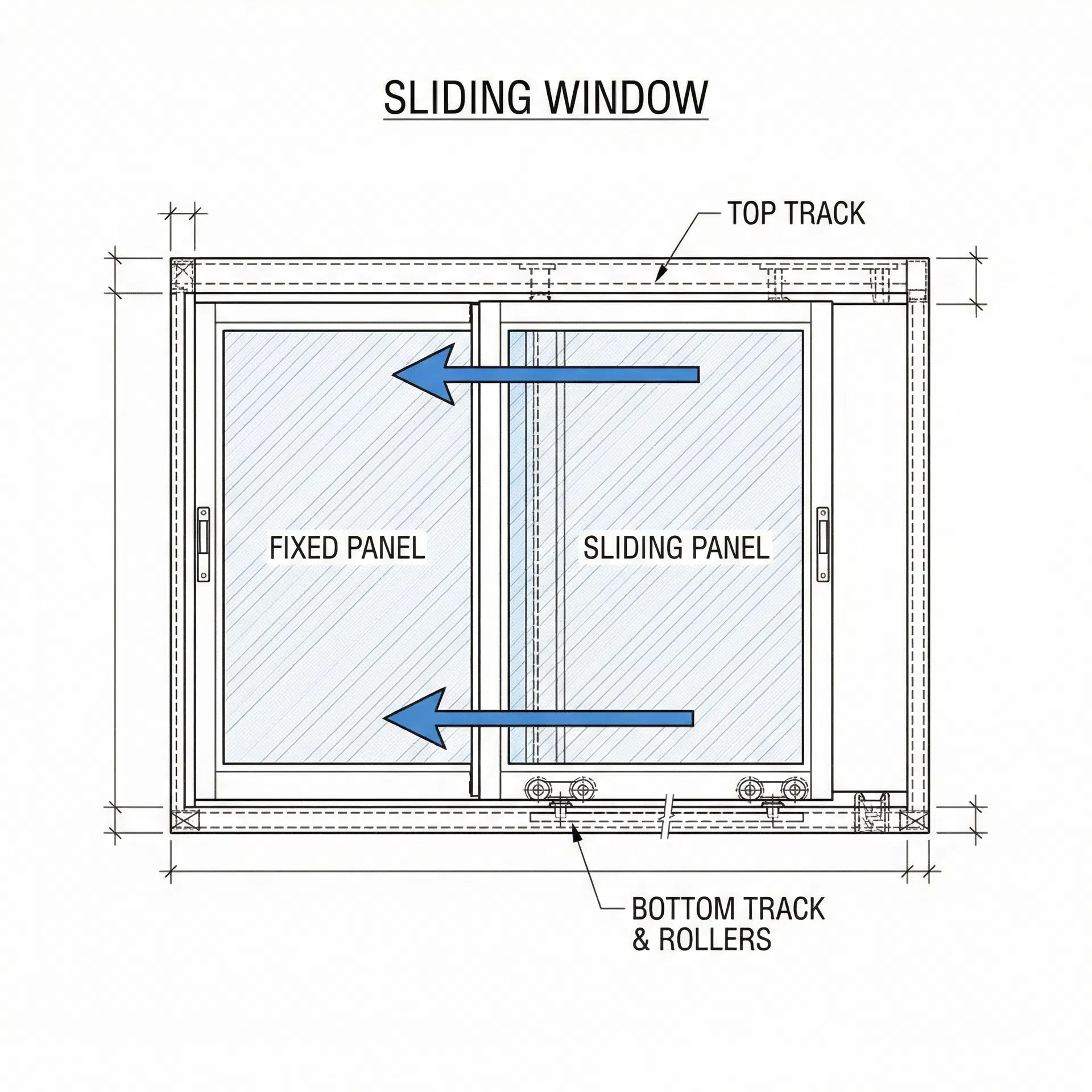

Sliding Windows: Space-Saving Simplicity

Sliding windows operate on a horizontal track system — one or more sashes glide sideways behind a fixed panel. They require zero swing clearance, making them ideal for spaces where furniture or walkways are positioned directly below the window.

How it works: The operable sash sits on rollers that ride along a bottom track (and are guided by a top track). A simple latch or lock secures the sash in the closed position. To open, the user releases the latch and pushes the sash horizontally. Some systems include a lift-and-slide mechanism for heavier sashes, where turning the handle slightly lifts the sash off its seals before sliding.

Key performance characteristics: Sliding windows provide a maximum ventilation area of 50% of the total window opening (since one panel always overlaps the other). Their air sealing performance is generally lower than casement or tilt-and-turn windows because the sash-to-frame interface uses brush or fin seals rather than compression gaskets. However, modern multi-track sliding systems with interlock seals have significantly improved weather performance.

Best applications: Residential balconies, kitchens (where counter space below the window prevents swing clearance), commercial storefronts, and any application where the interior space cannot accommodate an inward or outward swing. Sliding windows are the dominant type in tropical residential construction across Latin America, Southeast Asia, and the Middle East.

Specification considerations: For large openings, specify multi-track systems (2-track, 3-track, or 4-track) to increase the ventilation ratio. A 3-track system with 3 panels can provide 66% ventilation opening. Ensure the bottom track has adequate drainage channels to prevent water accumulation — this is a common failure point in poorly designed sliding systems.

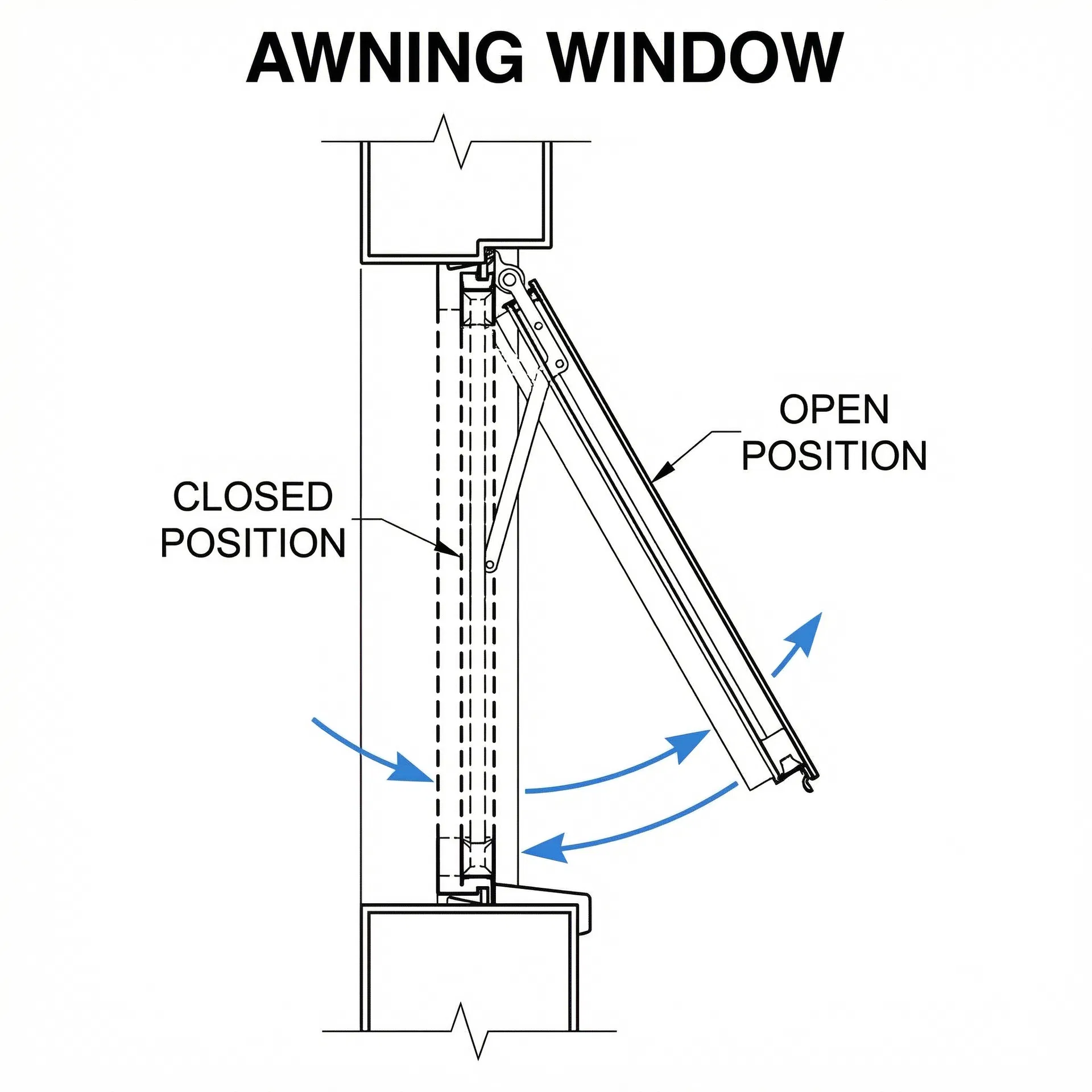

Awning Windows: Rain-Proof Ventilation

Awning windows are hinged at the top and swing outward from the bottom. The name comes from their resemblance to an awning — when open, the sash creates a canopy that deflects rain while allowing air to flow through the gap below.

How it works: A friction stay hinge at the top of the frame allows the sash to pivot outward from the bottom edge. A worm-gear operator or lever handle controls the opening angle. The sash can typically open 20-45 degrees, depending on the hardware and sash size. When closed, the sash weight compresses the bottom weatherstrip, creating a natural seal.

Key performance characteristics: Awning windows excel at rain protection during ventilation. Because the glass panel tilts outward and downward, it acts as a shield — rain runs down the exterior glass surface and drips off the bottom edge, away from the opening. This makes awning windows the preferred choice for climates with heavy rainfall where continuous ventilation is desired. They also perform well in moderate wind conditions because the wind pressure pushes the sash against the frame rather than forcing it open.

Best applications: Bathrooms, kitchens, basements, and any room where ventilation is needed regardless of weather conditions. Awning windows are frequently used in combination with fixed panels — a large fixed panel for views and light, with a smaller awning panel below or beside it for ventilation. This combination is common in commercial office buildings and institutional facilities.

Specification considerations: Awning windows project outward when open, so they should not be specified adjacent to walkways, balconies, or other areas where the protruding sash could obstruct passage or pose a safety hazard. Maximum practical sash width is approximately 1,200mm; beyond this, the sash weight makes the operator mechanism difficult to use.

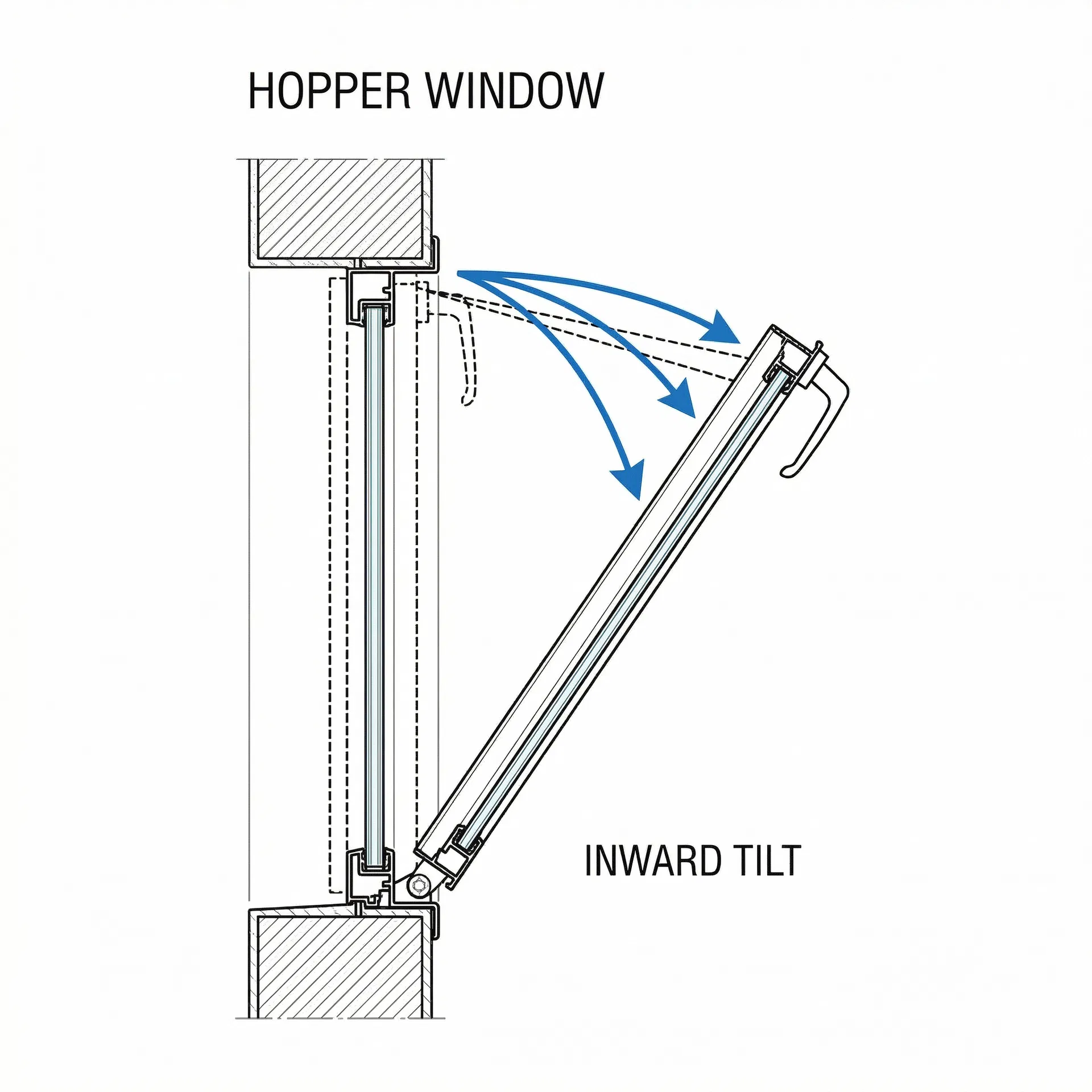

Hopper Windows: Controlled Ventilation for Basements and Utility Spaces

Hopper windows are the inverse of awning windows — they are hinged at the bottom and tilt inward from the top. This configuration provides controlled ventilation while preventing rain entry, and is particularly suited to below-grade and utility applications.

How it works: The sash is hinged at the bottom of the frame and tilts inward from the top edge. A limit stay restricts the opening angle (typically 15-30 degrees) to prevent the sash from opening too far. The handle or latch at the top of the sash controls the locking mechanism.

Key performance characteristics: Because the sash tilts inward with the glass surface angling downward toward the interior, rain is deflected by the exterior surface of the glass and cannot enter through the opening gap. The limited opening angle provides security — the gap is too narrow for intrusion — while still allowing adequate air exchange. Hopper windows are inherently resistant to wind-driven rain because the wind pushes the sash toward the closed position.

Best applications: Basements, mechanical rooms, utility corridors, parking garages, and industrial facilities where ventilation is required but security and weather protection are paramount. Hopper windows are also used in bathroom applications where privacy and rain protection are needed simultaneously.

Specification considerations: Hopper windows tilt inward, so interior obstructions (shelving, equipment, curtains) must be kept clear of the swing path. The inward tilt can collect dust and debris on the interior glass surface when open, requiring more frequent cleaning than outward-opening types.

Fixed Windows: Maximum Light, Maximum Performance

Fixed windows do not open. The glass is permanently sealed into the aluminum frame, creating the tightest possible weather barrier and the largest unobstructed glass area for any given frame size.

How it works: The glass panel (single, double, or triple glazed) is set into the aluminum frame with structural glazing tape or wet-seal silicone, then secured with pressure plates or snap-on glazing beads. EPDM gaskets create a continuous weatherseal around the entire perimeter. Because there are no moving parts, there are no hinges, handles, operators, or locking mechanisms to maintain or replace.

Key performance characteristics: Fixed windows deliver the highest thermal and acoustic performance of any window type because the seal is continuous and permanent — there are no operable joints where air or sound can leak. They also provide the narrowest sightlines (frame width visible from inside) because no space is needed for hinge mechanisms or operator hardware. This means more glass area and more natural light per square meter of wall opening.

Best applications: Curtain wall systems, storefronts, picture windows, clerestory glazing, and any application where views and daylight are the priority and ventilation is provided by other means (operable windows elsewhere, or mechanical HVAC). Fixed windows are the backbone of modern commercial architecture — they form 60-80% of the glazed area on most office towers, with operable windows strategically placed for supplemental ventilation.

Specification considerations: Buildings that rely entirely on fixed glazing must have adequate mechanical ventilation to meet indoor air quality codes. Many green building standards (LEED, BREEAM, WELL) award credits for operable windows that provide natural ventilation, so a mix of fixed and operable windows is typically the optimal strategy.

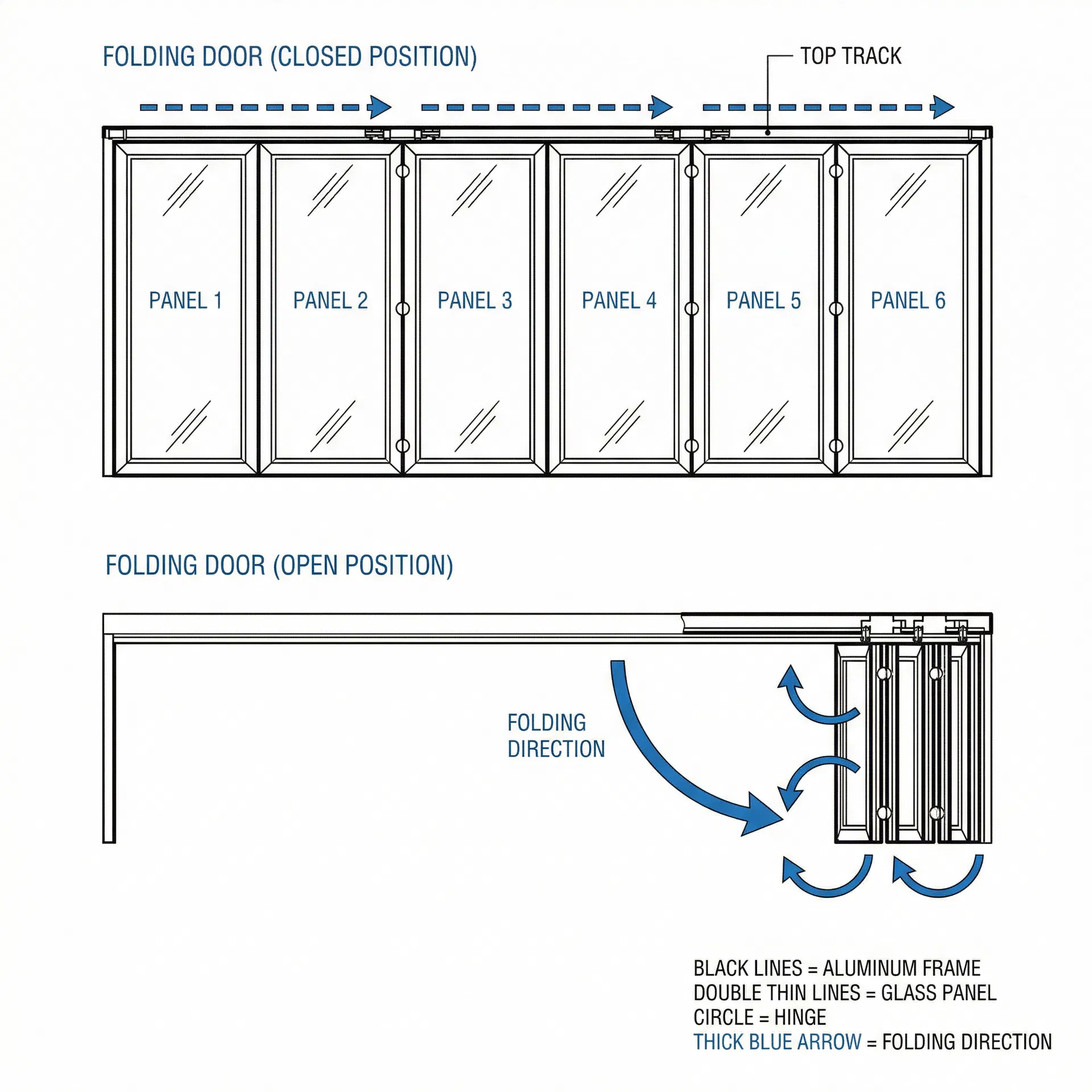

Folding Doors: Opening an Entire Wall

Folding doors (also called bi-fold doors or accordion doors) consist of multiple panels connected by hinges that fold against each other like an accordion, stacking to one or both sides of the opening. When fully open, they can clear 90-95% of the structural opening, effectively removing the wall between interior and exterior spaces.

How it works: Each panel is connected to its neighbor by a hinge, and the entire assembly rides on a top-hung track (with a bottom guide channel for alignment). When the user unlocks and pushes the lead panel, the panels fold in alternating directions — one folds inward, the next outward — and stack against the jamb. Systems are available in 2-panel to 8-panel configurations, with opening widths up to 8 meters or more.

Key performance characteristics: Folding doors provide the largest clear opening of any door type — when fully folded, only a narrow stack of panels (typically 400-600mm deep) remains at the side. This creates a seamless indoor-outdoor transition that is impossible to achieve with sliding or swing doors. Modern aluminum folding systems with thermal break profiles and double-glazed panels can achieve U-values of 1.4-1.8 W/m2K, making them suitable for climate-controlled buildings.

Best applications: Restaurants, cafes, and hospitality venues that want to open their dining areas to patios or gardens. Residential living rooms and master bedrooms that open to terraces, pools, or balconies. Showrooms and retail spaces that want to eliminate the barrier between the store and the street. Conference rooms and event spaces that need flexible room configurations.

Specification considerations: Folding doors require a level, structurally supported header to carry the weight of the panels (which can exceed 500 kg for large systems). The floor track must be flush with the finished floor on both sides to prevent tripping hazards. Wind resistance is lower than sliding or swing doors, so folding doors should be protected from direct wind exposure in high-wind locations.

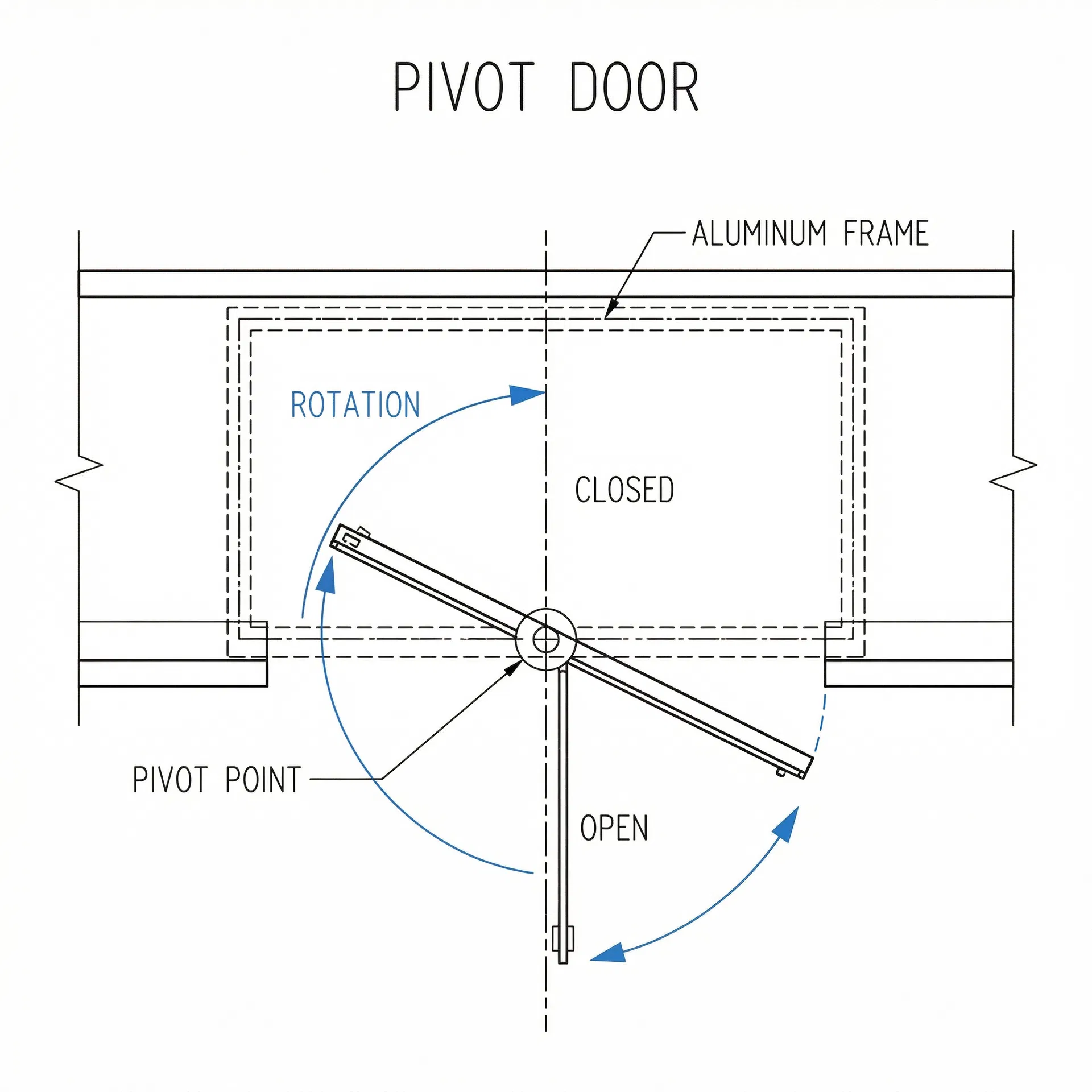

Pivot Doors: Architectural Statement Pieces

Pivot doors rotate on a central or offset pivot point rather than swinging on side-mounted hinges. This allows for dramatically larger and heavier door panels than conventional hinged doors — pivot doors can reach 3 meters tall and 1.5 meters wide, weighing up to 500 kg, while operating smoothly with one hand.

How it works: A pivot mechanism (typically a floor-mounted pivot box and a top pivot bearing) supports the door at two points along a vertical axis that is offset from the door's center — usually positioned at one-third of the door width. When pushed, the door rotates around this axis, with the short side swinging in one direction and the long side swinging in the other. This creates a distinctive asymmetric opening motion that is both functional and visually striking.

Key performance characteristics: The offset pivot distributes the door's weight across the floor and ceiling structure rather than concentrating it on side-mounted hinges, which is why pivot doors can be so much larger and heavier than conventional doors. The pivot mechanism (brands like FritsJurgens, Dorma, and GEZE) uses hydraulic damping to control the opening and closing speed, preventing slamming and ensuring smooth operation regardless of the door's weight.

Best applications: Grand entrance doors for hotels, corporate headquarters, luxury residences, and high-end retail. Pivot doors make an immediate architectural statement — they signal quality, scale, and design intention. They are also used as interior feature doors in lobbies, boardrooms, and penthouse apartments where a standard door would be visually underwhelming.

Specification considerations: Pivot doors require structural reinforcement at the floor pivot point to support the concentrated load. The floor pivot box is typically recessed into the slab, so it must be coordinated with the structural engineer during the design phase — not added as an afterthought. The door panel must be precisely balanced around the pivot axis; even a few millimeters of misalignment will cause the door to drift open or closed on its own.

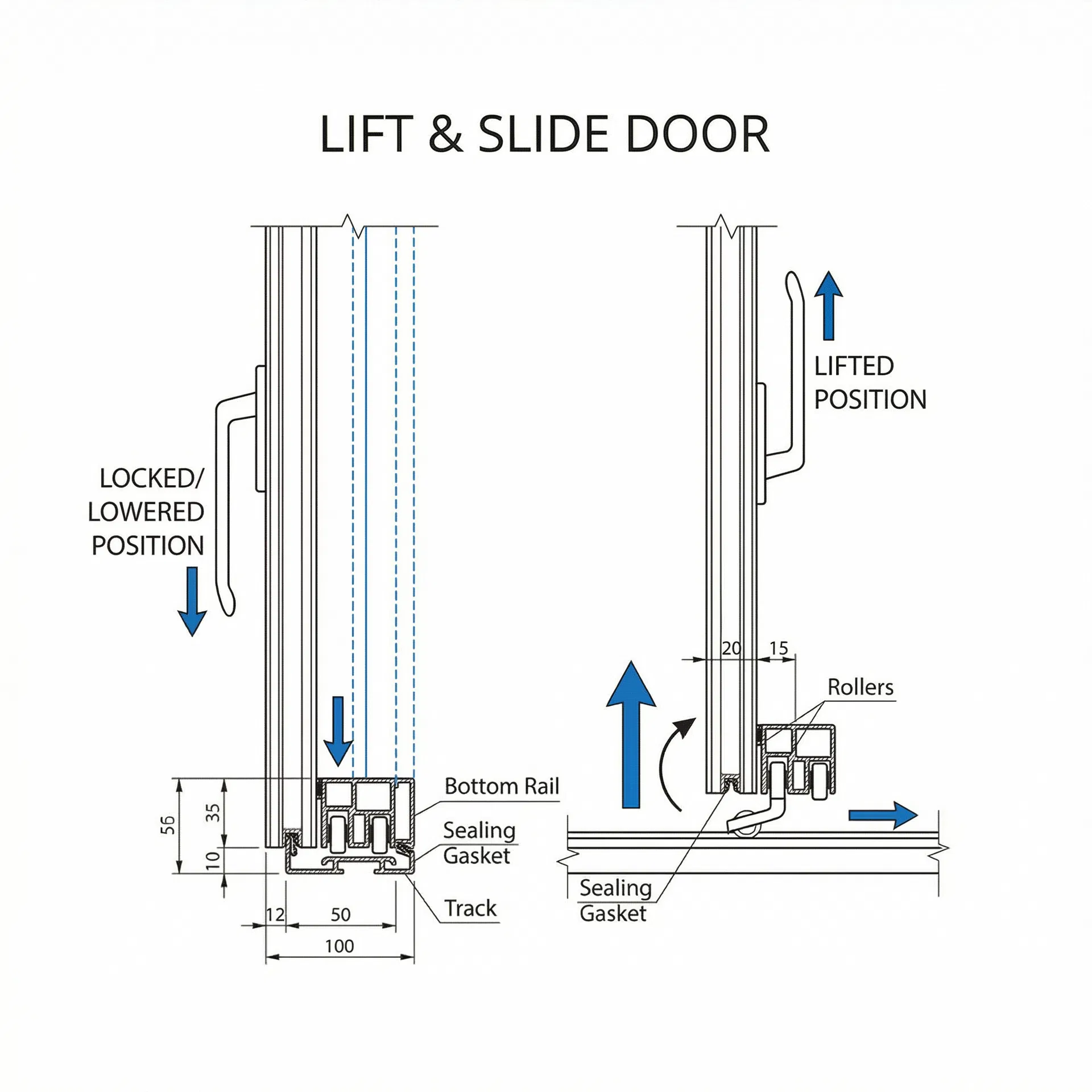

Lift & Slide Doors: Effortless Operation for Large Openings

Lift-and-slide doors are the premium solution for large glazed openings that need to operate smoothly without the space requirements of folding systems. The door panel lifts slightly off its seals, then glides horizontally on precision rollers — even panels weighing 400 kg can be moved with minimal effort.

How it works: When the handle is in the locked position, the door panel sits firmly on its bottom seals, creating a tight weatherseal. Turning the handle 180 degrees activates a cam mechanism that lifts the entire panel approximately 10-15mm off the bottom track, disengaging the seals. The panel can then be pushed horizontally along the track with minimal friction. When the panel reaches the desired position, turning the handle back lowers it onto the seals and re-engages the locking mechanism.

Key performance characteristics: Lift-and-slide doors offer the best combination of large opening size and weather sealing performance. Because the panel drops onto compression seals when locked, the air and water tightness approaches that of a fixed window — far superior to conventional sliding doors with brush seals. Panel sizes can reach 3 meters tall and 3 meters wide (9 m2 per panel), with 2-panel, 3-panel, and 4-panel configurations available for openings up to 12 meters wide.

Best applications: Luxury residential projects where large terrace or garden openings are required with premium weather performance. High-end hotels and resorts where floor-to-ceiling glass walls need to open for indoor-outdoor living. Penthouse apartments and villas where the door system must match the quality level of the overall project. Commercial showrooms where large product displays need to be accessible from the exterior.

Specification considerations: Lift-and-slide systems require precision-leveled tracks — even 2mm of deviation across a 6-meter track will cause binding or uneven operation. The structural opening must support the combined weight of all panels (which can exceed 1,000 kg for a 4-panel system). Will Enterprise manufactures lift-and-slide systems with thermal break profiles and can accommodate double or triple glazing for maximum thermal performance.

How to Choose the Right Opening Type for Your Project

Selecting the right opening type is not a one-size-fits-all decision — it depends on the building type, climate, floor level, interior layout, budget, and local building codes. Here is a practical decision framework that Will Enterprise uses when engineering window and door specifications for projects worldwide.

For residential buildings (1-4 stories): Casement windows for bedrooms and living rooms (maximum ventilation), awning windows for bathrooms and kitchens (rain protection), sliding windows for balcony access (space saving), and folding or lift-and-slide doors for terrace openings (indoor-outdoor living).

For mid-rise buildings (5-15 stories): Tilt-and-turn windows for all habitable rooms (safe ventilation at height, interior cleaning access), fixed windows for corridors and stairwells (no maintenance), and sliding or lift-and-slide doors for balcony access.

For high-rise buildings (15+ stories): Tilt-and-turn windows with restricted opening angles (code-compliant ventilation with fall protection), fixed windows for the majority of the facade (maximum performance), and sliding doors for enclosed balconies or winter gardens.

For commercial buildings: Fixed windows as the primary glazing type (60-80% of facade area), tilt-and-turn or awning windows for natural ventilation zones, pivot doors for main entrances, and folding doors for restaurant or retail frontages.

For industrial buildings: Awning or hopper windows for warehouse ventilation, fixed windows for office areas within industrial facilities, and sliding doors for loading and access areas.

Will Enterprise manufactures all of these opening types in-house, using thermal break aluminum profiles and European-certified hardware systems. Because we control the entire production process — from aluminum extrusion to glass processing to final assembly — we can optimize each window and door for the specific performance requirements of your project. Contact our engineering team for a specification consultation tailored to your building type, climate zone, and performance targets.
